4WD 25hp Mini Tractor , 1.532L Displacement Small Farm Tractors

Product Categories

Nanyang Xinda Electro-Mechanical Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : YTO

Model Number : SG254

Place of Origin : China

MOQ : 1 unit

Price : USD5700

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200unit per month

Delivery Time : 30 days

power : 25hp

Size : 3405x1440x2240

Drive : 4WD

Min. operating mass : 1535KG

Tyre spec., front /rear : 6.00-16/9.5-24

Product name : Agricultural Tractor

Contact Now

4WD 25hp Mini Tractor , 1.532L Displacement Small Farm Tractors

The Introduction of YTO SK254 Tractor 4WD 25HP Small wheel Tractor

1.Adopts three cylinder water cooled, four stroke diesel engine, which is environment riendly due to low emission

3.Hydraulic steering, coupled with the use of parking handle and OECD anti-turnover bar, helps ensure easy operation and high safety.

4.High reserve coefficient of the transmission system, dual speed PTO, optional 8+8 or 16+8 gears

5.Ideal for performing various garding tasks

4WD 25hp Mini Tractor , 1.532L Displacement Small Farm Tractors

Model	YTO-SK254
Diesel engine
Model	KM385BT
Type	Three cylinder, vertical, water cooled, four stroke
Displacement (L)	1.532
Rated power/speed(Kw)/(r/min)	18.4/2350
Max. torque (N.m)/speed (r/min)	86/1680
Bore x stroke (mm)	85x90
Transmission
Gear shift, forward/backward	8/4
Speed range (Km/h), forward/backward	2.07~29.65/2.45~7.84
PTO power (Kw)	14.72
PTO rotation speed(r/min)	540/720 or 540/1000
Clutch	8-inch, dry, double action
Implement
Three-point linkage category	Rear three-point linkageⅠ
Tilling depth control mode	Height adjustment, position adjustment
Lifting force(KN)	4.14
Options
Transmission with creeper gear	4x(2+1)x2
Transmission with shuttle device	4x2x2
Hydraulic output	2 group
Dimensions, mass, drive
Drive type	4x4
Overall dimensions (LxWxH)(mm)	3405x1440x2240
Wheelbase(mm)	1698
Min. ground clearance(mm)	315
Min. operating mass(with safety stand)(Kg)	1535
Tyre spec., front /rear	6.00-16/9.5-24
Wheel tread, front/rear	1200/1100,1200,1300,1400
Steering	Full hydraulic
Brake	Disc, mechanica

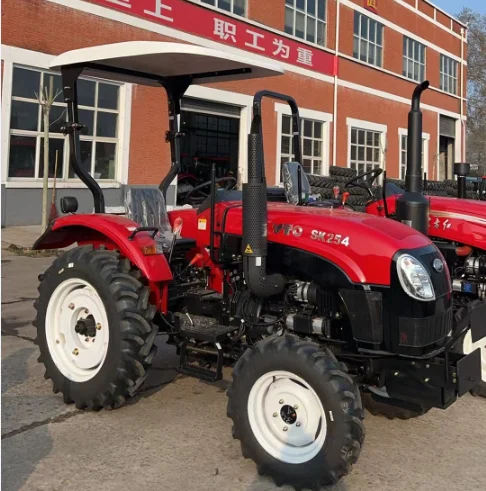

The Picture of YTO SK254 Tractor 4WD 25HP Small wheel Tractor

4WD 25hp Mini Tractor , 1.532L Displacement Small Farm Tractors
